1000KG DC Arc Furnace for Rebar Production Line Electric Arc Furnace

สถานที่กำเนิด จีน
ชื่อแบรนด์ Shaanxi Chengda
ได้รับการรับรอง ISO 9001
หมายเลขรุ่น เจรจาตามความสามารถในการประมวลผลอุปกรณ์
จำนวนสั่งซื้อขั้นต่ำ 1 หน่วย
ราคา The price will be negotiated based on the technical requirements and supply scope of Party A
รายละเอียดการบรรจุ หารือตามข้อกำหนดเฉพาะของฝ่ายก
เวลาการส่งมอบ 2-3 เดือน
เงื่อนไขการชำระเงิน L/C, T/T, Western Union
สามารถในการผลิต ซัพพลายเชนการผลิตที่สมบูรณ์อุปทานตรงเวลาและเป็นไปตามมาตรฐานคุณภาพ

ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง

Whatsapp:0086 18588475571

วีแชท: 0086 18588475571

สกายเป้: sales10@aixton.com

หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
เน้น

1000KG DC arc furnace

,

electric arc furnace for rebar production

,

hazardous waste treatment furnace

คุณสามารถเลือกผลิตภัณฑ์ที่คุณต้องการและสื่อสารกับเราได้ในกระดานข้อความ
ฝากข้อความ
รายละเอียดสินค้า

This supplier is both a manufacturer and trader, offers quality control, and provides full customization, design customization, and sample customization. The positive review rate is 100.0%.

Features
Electric Arc Furnace Characteristic:
1. Smelting temperature is flexible to be controlled, and meets different steel grade production needs.
2. High heat efficiency, the atmosphere inside the furnace can be controlled.
3. Can remove the phosphorus, sulfur, oxygen, and other impurities and improve steel quality.
4. Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5. Equipment is a simple and shorter technological process.

Service:
- We can provide a foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption
As a professional Electric Arc Furnace, Induction Furnace, and Submerged Arc Furnace manufacturer in China, we can supply
designing, manufacturing, installation, and commissioning of the equipment with "turn-key" service. We can also design,
manufacture and revamp other non-standard equipment according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details.
Sincerely welcome you to come and visit our plant.

Specification
Model
Furnace enclosure inner diameter
(mm)
Rate capacity/Max capacity (ton)
Furnace transformer
Reactor power
(KVA)
Electrode pitch circle diameter
Electrode diameter(mm)
Rated power
(KVA)
Secondary voltage
(V)

HX-0.5
2000
0.5/1
630
200-98
120
500
150
HX-1.5
2200
1.5/3
1250
210-104
200
650
200
HX-3
2600
3/8
2200
210-104
250
750
250
HX-5
3200
5/12
3200
221-110
320
850
300
HX-10
3500
10/16
5000
240-121
360
1000
350
6300
260-139
360
HX-15
3700
15/20
6300
260-139
340
1000
350
9000
260-139
HX-20
4000/
4200
20/32
9000
260-139
/
1000
350
12500
340-195
/
1050
400
16000
375-200
/
1050
400
HX-30
4600
30/45
16000
375-200
/
1100
450
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
HX-50
5000
50/60
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
35000
670-370
7800
1100
450
HX-80
5800
85/95
35000
650-350
6800
1100
450
40000
690-390
8500
1250
500
50000
800-500
9800
1300
500
HX-100
6200
100/120
35000
670-520-370
7800
1100
450
50000
800-650-340
9800
1300
500
63000
920-720-480
13000
1350
600
Application

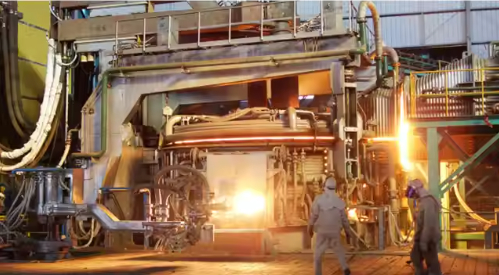

The electrice arc furnace for steel-making is a special purpose equipment that makes ordinary steel ,quality carbon steel alloy steel and non-corrosive steel with electric arc as heat source and scrap steel (iron) as raw material.
